Dynamics AX 2012 and BarTender Commander

I have previously blogged on the BarTender integration to Dynamics AX 2012.  In this blog post I want to take the integration one step further.

Sometimes it is not possible to have a BarTender client on each machine.  Also in a Terminal Server scenario often local label printers are mapped into the RDP session, and you suddenly see that you are using up all the printer licenses you have purchased for BarTender.


There is a way around this, and that is to use BarTender Commander instead of the BarTender ActiveX integration. Then the printer, copies and tag values can be sent to a XML file, that the BarTender is picking up, and will automatically print out centrally.

So I needed to create some very small changes to my BarTender module to make this happen.

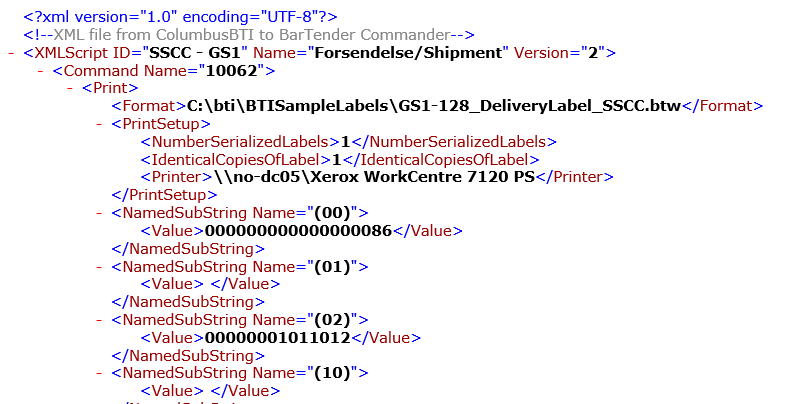

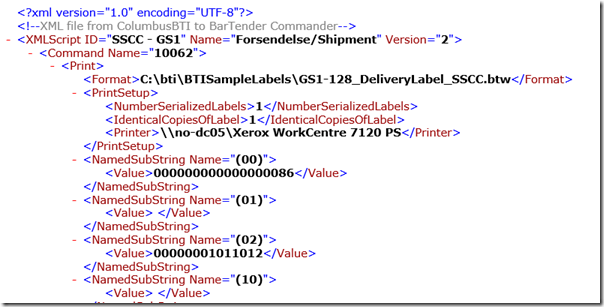

This will generate a XML file, that looks like this.

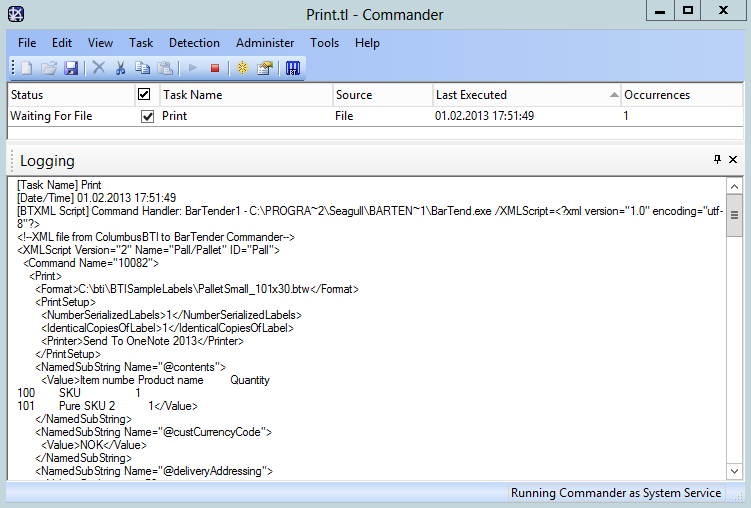

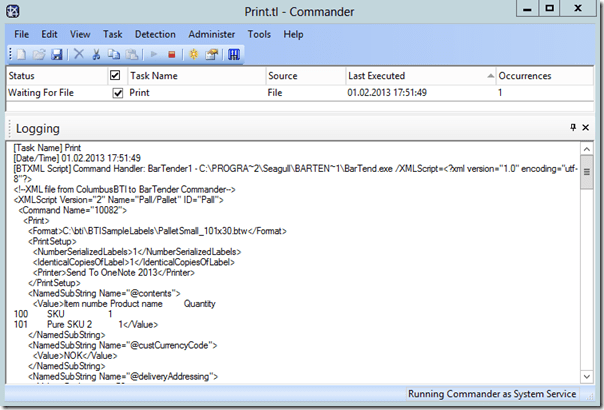

The BarTender commander “picks this up”.


And BarTender prints out accordingly.

I also see that some of the users of the BarTender integration is using it in a different way that I expected.  They are using it WITHOUT BarTender, and are just generating the XML messages.   Then they pick up this XML file, and use it for other types of integrations, like EDI and even into a dynamic document composition tools(Like StreamServ).  They then don’t need to spend a lot of time in creating SSRS reports, but more their reporting requirements into a more user-friendly reporting tool.  My comment is WOW…. I didn’t recognize that feature when I created it Smilefjes  Users are really creative and smart.

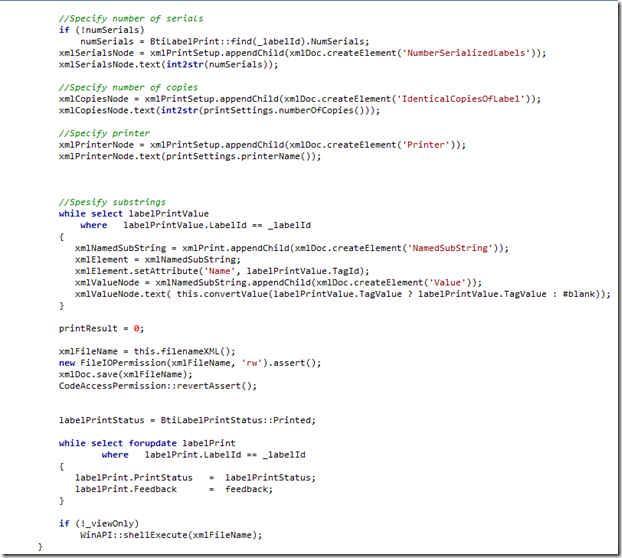

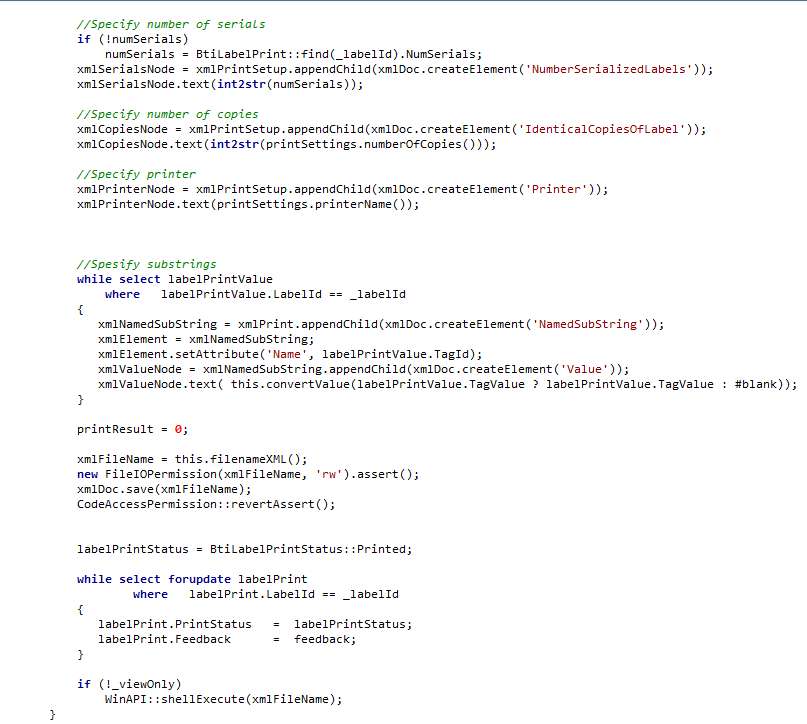

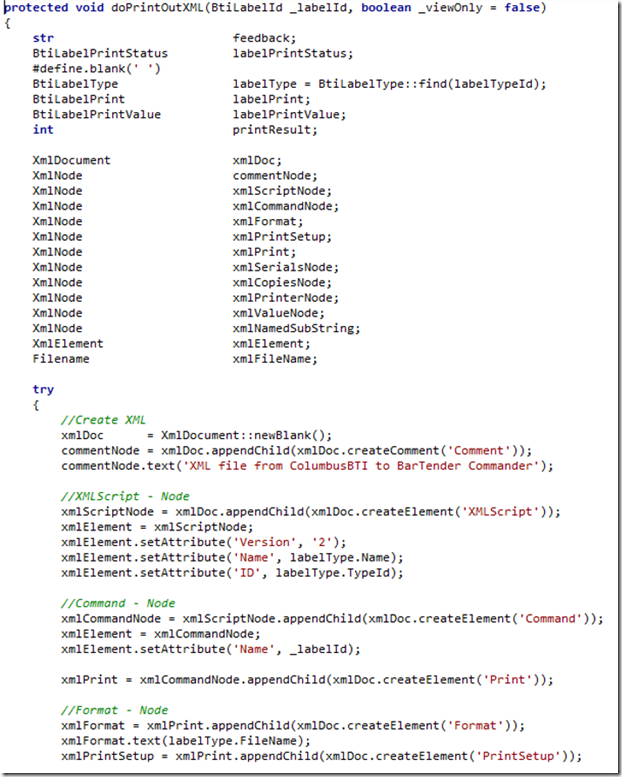

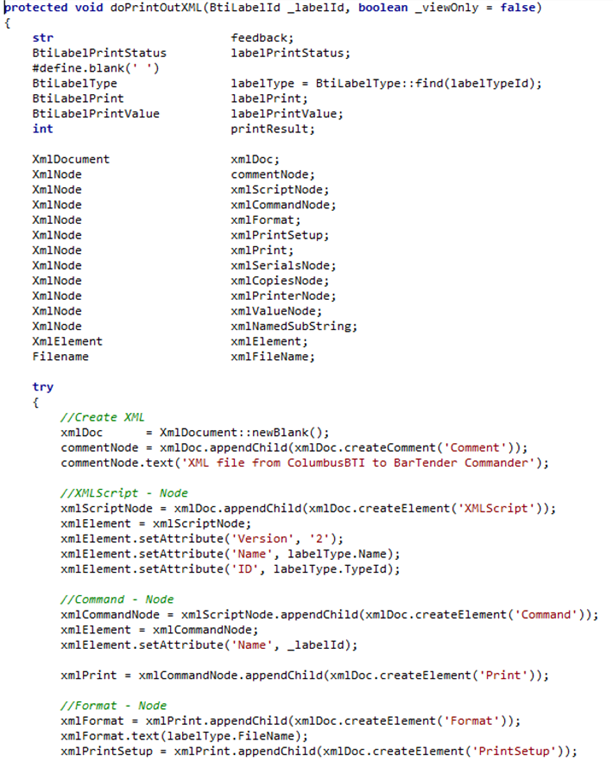

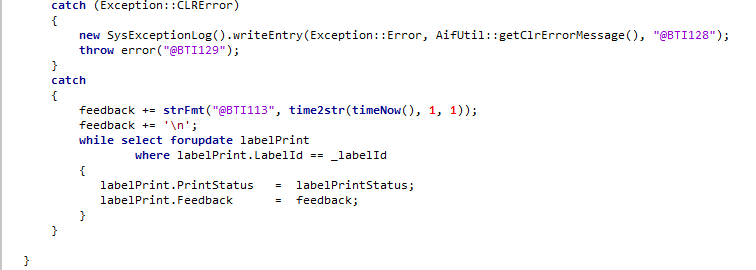

In my last blogpost I explained how important if it is to share knowledge.  I follow up on this, and here the actual Dynamics AX 2012 source code for creating BarTender commander XML files.




(Yes I know that you would prefer a “copy-paste” version, but that would be too easy Smilefjes)

Happy Daxing

I appreciate that I can be a part of this worldwide blog community—as a consultant working from Norway, the blog lets me share more than 20 years of experience with Microsoft Dynamics 365. Along the way, I participated in developing retail, PDA/RF, barcoding, master data, kitting and WMS-solutions for Dynamics. My blog focuses on my deepest interests and expertise: along with a 360 degree view of digital transformation topics, I welcome opportunities to dive into retail and intercompany supply chain automation, logistics, and production—everything that is moving around in a truly connected enterprise. As Enterprise Architect on Dynamics 365, I specialize in strategic development and planning for corporate vertical solutions and works to build international networks that increase knowledge and understanding for Dynamics 365. As an advocate for both providers and customers, I'm committed to ensure that customers constantly changing needs are meet, and I see community as key for increasing expertise. I welcome you to connect with me.

7 comments on “Dynamics AX 2012 and BarTender Commander

  1. Hi Kurt.
    First thanks with all de information you share. It has been a big help to me when i don’t get the answers we need.
    I would like to ask you:
    We would like to integrate scanning to AX-2012 R2. We work and we have NiceLabel. Do you know if this is compatibel with AX-2012 R2? What do we have to take into account?
    Many thanks.


    • Hi Sergio. The barTender solution also supports the ability to export labels XML files, that NiceLabel can pick-up and use. But if you contact To-Increase, that is the current IP-owner of the BarTender integration solution they can guide and assist further.


  2. Bruno Hirsnik

    Kurt, we are also looking for a solution to integrate Bartender Commander with Dynamics AX 2012 R2. We have implemented AX 2012 R2.
    Could you send me the NDA and a demo, along with pricing information in USD or EUR?


    • Hi Bruno. I have forwarded your email to To-Increase, that is the current owner of the BarTender Integration solution. They will contact you directly.


  3. Kurt, stumbled across your blog when looking for a solution to integrate Bartender Commander with Dynamics AX 2012 R2. We are currently implementing AX and already licensed to use Bartender. Could you send me the NDA and demo, along with pricing information in USD?


  4. Is it possible to do this through the AIF aswell?
