Batch Jobs; Take control of the executions

Dynamics 365 can be automated quite a lot with the use of batch jobs. With batch jobs, your Dynamics 365 solution becomes “alive”, and we can set up the system to automate many manually processes. Lets say to have the following “vanilla process”, and wants to automate as many steps as possible.

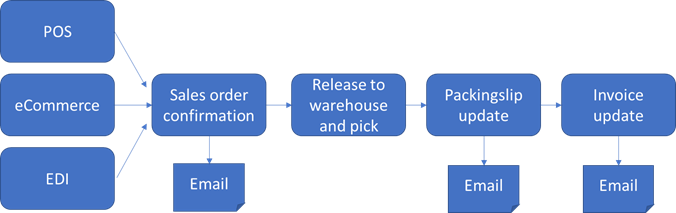

This document covers the Batch jobs needed to be setup for this process to be as automated as possible. I wanted to put a structured system on all the batch jobs that is typically used in a production system. But this also generates a lot of data, that you don’t normally need. It is therefore common to create both functional batch jobs that processes and executes functionality, and also execute cleanup jobs that removes irrelevant data.

Batch job Naming conventions

To make it simpler to understand the batch jobs a simple structure of naming the batch jobs have been created. The first character is just “A”, to make sure that the sorting of the batch jobs is in the best possible way, and that the batch jobs can be sorted according to name. The next is a 3 digit number and at the last there is a then a description that explains the batch job.

ID

Description

A001-A099

System administration batch jobs

A100-A199

Data management batch jobs

A200-A299

General ledger batch jobs

A300-A399

Procurement and sourcing batch jobs

A400-A499

Sales and marketing batch jobs

A500-A599

Retail batch jobs

A600-A699

Inventory management batch jobs

A700-A799

Warehouse management batch jobs

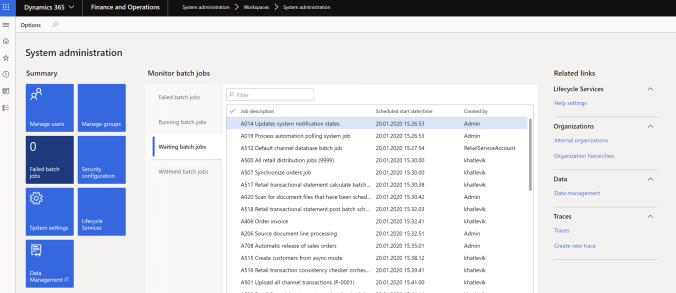

Reach of these ranges are then set up as batch groups, and you can better control what AOS servers is executing what type of batch jobs:


In this blog post more than 87 batch jobs have been specified, and that keeps the Dynamics 365 system updated and as automatic as possible

Job description
A001 Notification clean-up
A002 Batch job history clean-up
A003 Batch job history clean-up (custom).
A004 Daily Diagnostics rule validation
A005 Weekly Diagnostics rule validation
A006 Monthly Diagnostics rule validation
A007 Named user license count reports processing
A008 Databaselog cleanup
A009 Delete the inactivated addresses
A010 Scan for orphaned document references.
A011 Report data clean up
A012 Cryptography crawler system job that needs to regularly run at off hours.
A014 Updates system notification states.
A015 Deletes non-active and orphaned system notifications.
A016 Database compression system job that needs to regularly run at off hours.
A017 Database index rebuild system job that needs to regularly run at off hours
A018 Deletes expired email history.
A019 Process automation polling system job
A020 Scan for document files that have been scheduled for physical deletion.
A021 System job to clean up expired batch heartbeat records.
A022 System job to seed batch group associations to batch jobs.
A023 System job to clean up unrecovered user session states.
A024 Change based alerts
A025 Due date alerts
A026 Email distributor batch
A027 Email attachment distributor
A103 Entity Store Deploy measurement
A103 Refresh data entity
A200 Clean up ledger journals
A201 Import currency exchange rates
A205 Create a scheduled task that will execute the batch transfer of subledger journal entries.
A205 Update purchase and sales budget
A206 Source document line processing
A207 Source document line processing queue cleanup
A208 Ledger journal monitor
A300 Purchase update history cleanup
A300 Purchase update history cleanup
A301 Delete request for quotation
A303 Draft consignment replenishment order journal cleanup
A303 Run Forecast planning
A304 Run Master planning
A305 Post product receipt
A403 Sales update history cleanup
A405 Order packing slip
A406 Order invoice
A407 Calculate sales totals
A500 All retail distribution jobs (9999)
A501 Upload all channel transactions (P-0001)
A502 Process Assortment
A503 Update listing status
A504 Product availability
A505 Generate related products based on customer transactions
A506 Process delivery modes
A507 Synchronize orders job
A508 Update search Product data
A509 Update search Customer data
A510 DOM batch job
A511 DOM fulfillment data deletion job
A512 Default channel database batch job
A513 Recommendation batch job
A514 Retail scheduler history data removal batch job
A515 Create customers from async mode
A516 Retail transaction consistency checker orchestrator
A517 Retail transactional statement calculate batch scheduler
A518 Retail transactional statement post batch scheduler
A519 Retail financial statement calculate batch scheduler
A520 Retail financial statement post batch scheduler
A521 Process loyalty schemes
A522 Post earned points in batches
A523 Process loyalty lines for other activities
A524 Retail time zone information job
A600 Calculation of location load
A601 Inventory journals clean-up
A602 Inventory settlements clean up
A605 On-hand entries cleanup
A606 Warehouse management on-hand entries cleanup
A607 On-hand entries aggregation by financial dimensions
A608 Cost calculation details
A609 CDS – Post integration inventory journals
A700 Work creation history purge
A701 Containerization history purge
A702 Wave batch cleanup
A703 Cycle count plan cleanup
A705 Work user session log cleanup
A706 Wave processing history log cleanup
A707 WMS Replenishment
A708 Automatic release of sales orders

I will not go in detail of all the jobs, but here I at least refer to where you can find the menu item or what class is used in the batch job tasks. Also take a look at blog post by the D365 Solution architecture team, that is a subset of the batch jobs presented in this blog post.

System administration batch jobs

These are general system batch jobs that can perform cleanups and other general executions.

ID

Name, path and recurrence

Description and recurrence

A001 A001 Notification clean-up

System administration > Periodic tasks > Notification clean up

Daily

This is used to periodically delete records from tables EventInbox and EventInboxData. Recommendation would also be if you don’t use Alert functionality to disable Alert from Batch job.

A002 A002 Batch job history clean-up

System administration > Periodic tasks > Batch job history clean-up

Daily

The regular version of batch job history clean-up allows you to quickly clean all history entries older than a specified timeframe (in days). Any entry that was created prior to – will be deleted from the BatchJobHistory table, as well as from linked tables with related records (BatchHistory and BatchConstraintsHistory). This form has improved performance optimization because it doesn’t have to execute any filtering.

A003 A003 Batch job history clean-up (custom).
System administration > Periodic tasks > Batch job history clean-up (custom)

Manually

The custom batch job clean-up form should be used only when specific entries need to be deleted. This form allows you to clean up selected types of batch job history records, based on criteria such as status, job description, company, or user. Other criteria can be added using the Filter button.

A004 A004 Daily Diagnostics rule validation

System administration > Periodic tasks > Diagnostics rule validation

Daily

Incorrect configuration and setup of a module can adversely affect the availability of features, system performance, and the smooth operation of business processes. The quality of business data (for example, the correctness, completeness, and cleanliness of the data) also affects system performance, and an organization’s decision-making capabilities, productivity, and so on. The Optimization advisor workspace is a tool that lets you identify issues in module configuration and business data. Optimization advisor suggests best practices for module configuration and identifies business data that is obsolete or incorrect.
A005 A005 Weekly Diagnostics rule validation

System administration > Periodic tasks > Diagnostics rule validation

Weekly

Performs a weekly validation and diagnostics.
A006 A006 Monthly Diagnostics rule validation

System administration > Periodic tasks > Diagnostics rule validation

Monthly

Performs a monthly validation and diagnostics based on the rules.
A007 A007 Named user license count reports processing

Class : SysUserLicenseMiner

Daily

Batch job that counts number of users that have been using the system. The data is used in the Named user license count report. D365 creates this execution automatically, but you have to rename it to fit this structure.
A008 A008 Databaselog cleanup

System administration > Inquiries > Database > Database Log

Weekly

This job cleans up the database log, and makes sure that only (let’s say) 100 day’s of history remains. In the query criteria I set created date time less than “d-100”, to ensure that I keep 100 day’s of database log. This is general housekeeping and dusting in the system, and keeping the system nice and tidy.
A009 A009 Delete the inactivated addresses

Organizational administration > Periodic >Delete inactivated addresses

Weekly

Deletes addresses that have been set to inactive.
A010 A010 Scan for orphaned document references.

Class : DocuRefScanOrphansTask

Daily

Batch job that is setup automatically by the system, and scans for document references where the source record is deleted.
A011 A011 Report data clean up

Class: SrsReportRunRdpPreProcessController

Daily

Cleans up any data generated for SSRS reports.
A012 A012 Cryptography crawler system job that needs to regularly run at off hours.

Class: SysCryptographyCrawlerTask

Every 3 days

Auto created at D365 setup …Not sure what this is, yet…..
A013 A013 Data cache refresh batch

System administration > Setup >

Data cache >Data cache parameters

Every 10 minutes

The data cache framework is used to cache data sets and tiles. Enabling of the data cache framework will redirect certain queries against a cache table instead of executing them against the underlying source tables.
A014 A014 Updates system notification states.

Class : SystemNotificationUpdateBatch

Every minute

Updates notifications,
A015 A015 Deletes non-active and orphaned system notifications.

Class : SystemNotificationScanDeletionsBatch

Daily

Deletes non-active and orphaned system notifications
A016 A016 Database compression system job that needs to regularly run at off hours.

Class: SysDatabaseCompressionTask

Daily

Compresses the database
A017 A017 Database index rebuild system job that needs to regularly run at off hours

Class: SysDatabaseIndexRebuildTask

Daily

Rebuilds indexes to ensure good index performance
A018 A018 Deletes expired email history

Class: SysEmailHistoryCleanupBatch

Daily

Deletes expired email history
A019 A019 Process automation polling system job

Class: ProcessAutomationPollingEngine

Every minute

Using business events, the polling use case can be re-designed to be asynchronous if it is triggered by the business event. Data will be processed only when it is available. The business logic that makes the data available triggers the business event, which can then be used to start the data processing job/logic. This can save thousands of batch executions from running empty cycles and wasting system resources.
A020 A020 Scan for document files that have been scheduled for physical deletion.

Class: DocuDeletedFileScanTask

Hourly

Scan for document files that have been scheduled for physical deletion
A021 A021 System job to clean up expired batch heartbeat records.

Class : SysCleanupBatchHeartbeatTable

Daily

Cleans up the new internal monitoring BatchHeartbeatTable table (Only after PU32), and used for priority-based batch scheduling.
A022 A022 System job to seed batch group associations to batch jobs.

Class:
SysMigrateBatchGroupsForPriorityBasedScheduling

Daily

See priority-based batch scheduling.
A023 A023 System job to clean up unrecovered user session states.

Class:
SysUnrecoveredUserSessionStateCleanup

Daily

Cleans up sessions that is unrecovered.
A024 A024 Change based alerts

System administration > Periodic tasks > Alerts > Change based alerts

Hourly (or faster)

Events that are triggered by change-based events. These events are also referred to as create/delete and update events.

See also Microsoft docs.

A025 A025 Due date alerts

System administration > Periodic tasks > Alerts > Due date alerts

Hourly (or faster)

Events that are triggered by due dates.

See also Microsoft docs.

A026 A026 Email distributor batch

System administration > Periodic tasks > Email processing > Email distributor batch

Send emails. See also Microsoft docs.
A027 A027 Email attachment distributor Send emails, with attachments. For workflow.

Data management batch jobs

Data management executions can generate a lot of data, and to maintain performance and avoid data growth, it is relevant to clean up staging tables and job executions. Also document any of your recurring executions to make it easy and simple to maintain a overview of your data imports and exports that are recurring.

ID

Name, path and recurrence

Description

A100

[Cannot be executed in batch]

Data management workspace > “Staging cleanup” tile

Manually

Data management framework makes us of staging tables when running data migration. Once data migration is completed then this data can be deleted using “Staging cleanup” tile.

A101

A101 Job history cleanup

Data management workspace > Job history cleanup

Daily

The clean up job will execute for the specified amount of time. If more history remains to be cleaned up after the specified about of time has elapsed, the remaining history will be cleaned up in the next recurrence of the batch job or it can be manually scheduled again.

A102

A102 BOYD Data management export

Data management workspace >export in batch

Hourly

If you have a data management export to BYOD, then this can be executed in batch. There are other options that also can be evaluated for this purpose. See A102 BOYD Data management export

A103

A103 Refresh data entity

System administration à Setup à Entity Store

Monthly

To refresh the entity store (the built in embedded power BI). The refresh updates the aggregated measurements, and is only relevant of there are updates or changes that affect these.

General ledger batch jobs

ID

Name, path and recurrence

Description

A200

A200 Clean up ledger journals

Periodic tasks > Clean up ledger journals

Weekly

It deletes general ledger, accounts receivable, and accounts payable journals that have been posted. When you delete a posted ledger journal, all information that’s related to the original transaction is removed. You should delete this information only if you’re sure that you won’t have to reverse the ledger journal transactions.

A201

A201 Import currency exchange rates

Currencies > Import currency exchange rates

Daily

Automatically imports exchange rates from the bank.

A202

A202 Purchase budget to ledger

Inventory management > Periodic tasks > Forecast updates > Purchase budget to ledger

Monthly

Posts the purchase budget to ledger

A203

A203 Sales budget to ledger

Inventory management > Periodic tasks > Forecast updates > Sales budget to ledger

Monthly

Posts sales budget to ledger

A204

A204 Update purchase and sales budget

Inventory management > Periodic tasks > Forecast updates > Update purchase and sales budget

Monthly

Updates the purchase and sales budget.

A205

A205 Create a scheduled task that will execute the batch transfer of subledger journal entries.

General Ledger > Periodic tasks > Batch transfer for subledger journals

Daily

Batch transfer for subledger journals

A206

A206 Source document line processing

Class: SourceDocumentLineProcessingController

Every 10 minutes

Used for accounting distribution. See Microsoft docs.

A207

A208 Source document line processing queue cleanup

Class: SourceDocumentLineProcessingQueueCleanupController

Weekly

Used for cleaning up accounting distribution. See Microsoft docs.

A208

A208 Ledger journal monitor

Class: LedgerJournalTableMonitorController

Every 6 hours

Monitors if ledger journals should be blocked or opened.

Procurement and sourcing batch jobs

ID

Name, path and recurrence

Description

A300

A300 Purchase update history cleanup

Periodic tasks > Clean up > Purchase update history cleanup

Weekly

This is used to delete all updates of confirmations, picking lists, product receipts, and invoices generate update history transactions.

A301

A301 Delete request for quotation

Periodic tasks > Clean up > Delete requests for quotations

Manually

It is used to delete requests for quotation (RFQs) and RFQ replies. The corresponding RFQ journals are not deleted, but remain in the system.

A302

A302 Draft consignment replenishment order journal cleanup

Periodic tasks > Clean up > Draft consignment replenishment order journal cleanup

Weekly

It is used to cleanup draft consignment replenishment order journals.

A303

A303 Run Forecast planning

Master planning > Forecasting > Forecast planning

Weekly

Demand forecasting is used to predict independent demand from sales orders and dependent demand at any decoupling point for customer orders. See also at Microsoft docs, where using additional azure services to perform the calculation.

A304

A304 Run Master planning

Master planning > Master planning > Run > Master planning

Daily

Master planning is used to generate planned (purchase) orders, based on the coverage settings. We expect this service to be enhanced with more real-time oriented planning engine. The master planning batch job execution is located at. Also check out the Microsoft docs on this (large) subject.

A305

A305 Post product receipt

Procurement and Sourcing > Purchase orders > Receiving products > Post product receipt

Automatically post purchase receipt when all lines have been registered,

Sales and marketing batch jobs

ID

Name, path and recurrence

Description

A400

A400 Delete sales orders

Periodic tasks > Clean up > Delete sales orders

Manually

It deletes selected sales orders.

A401

A401 Delete quotations

Periodic tasks > Clean up > Delete quotations

Manually

It deletes selected quotations.

A402

A402 Delete return orders

Periodic tasks > Clean up > Delete return orders

Manually

It deletes selected return orders.

A403

A403 Sales update history cleanup

Periodic tasks > Clean up > Sales update history cleanup

Weekly

It deletes old update history transactions. All updates of confirmations, picking lists, packing slips, and invoices generate update history transactions. These transactions ca be viewed in the History on update form.

A404

A404 Order events cleanup

Periodic tasks > Clean up > Order events cleanup

Weekly

Cleanup job for order events. Next step is to remove the not needed order events check-boxes from Order event setup form.

A405

A405 Order packing slip

Sales order > Ordershipping > Post Packingslip

Hourly

Set up automatic packingslip posting of the sales order is completely picked. (If this is the process). This means that as soon as the WMS have picked the order it gets packingslip updated.

A406

A406 Order invoice

Accounts payable > Invoices > Batch invoicing > Invoice

Hourly

Set up automatic invoice posting of the sales order is completely packingslip updated. (If this is the process).

A407

A407 Calculate sales totals

Periodic tasks > Calculate sales totals

Recalculate the totals for the sales order. This is typically used in scenario’s when the sales order is part of a “Prospect to cash” scenario. See docs.

Retail batch jobs

ID

Name, path and recurrence

Description

A500

A500 All retail distribution jobs (9999)

Retail and Commerce > Retail and Commerce IT > Distribution schedule

Hourly

This batch job is sending all distribution jobs to the retail channel database. This data like products, prices, customers, stores, registers etc. The distribution job is a “delta” distribution, meaning that only new and changed records are sent. There is a lot of more to be discussed on how to optimize the 9999-distribution job, and for really large retail installations some deep thinking is required. For smaller installations it should be OK to just use the setup that is automatically generated when initializing D365 retail/Commerce.
A501

A501 upload all channel transactions (P-0001)

Retail and Commerce > Retail and Commerce IT > Distribution schedule

Hourly

The P-0001 is sending the retail transactions back from the POS to the D365 HQ, where the retail transactions can be posted and financially updated.
A502

A501 Process Assortment

Retail and Commerce > Retail and Commerce IT > Products and Inventory > Process Assortment

Hourly

This job processes the assortment based on the assortment categories set on an item, and based on the assortment set up, puts the items in the relevant stores’ assortment. When defining an assortment, you have in D365 the possibility to connect organization hierarchies to retail category hierarchies. The process assortment will perform the granulation of this, so that D365 have a detailed list of each product that is present in each store. The assortment is setup under Retail and Commerce à Catalogs and assortments à Assortments and more details is available on Microsoft docs.
A503

A503 Update listing status

Retail and Commerce > Retail and Commerce > Products and Inventory > Update listings

Daily

The listing status is related to publishing a retail catalog to an online store. The Microsoft documentation is not the best in this area, and the closes explanation I have is that it is related to the listing status on the catalog.
A504

A504 Product availability

Retail and Commerce > Retail and Commerce > Products and Inventory > Product availability

Daily

The batch job for product availability is calculate if a product is available on online store. Checkout this blogpost for further details. SiteCore eCommerce integrations can benefit from this, and in essence it populates the data needed for distribution job 1130, and that maintains the following tables into the channel database
A505

A505 Generate related products based on customer transactions

Retail and Commerce > Retail and Commerce IT > Products and Inventory > Generate related products

Daily

This job will automatically populate related products based on sales transaction purchase history. The two relationships created are ‘customers who bought this item also bought’ and the ‘frequently bought together’ relation types. This data can then further be used in eCommerce scenario’s. Fore deep details, take a look at the class ‘RetailRelatedProductsJob’
A506

A506 Process delivery modes

Retail and Commerce > Retail and Commerce IT > Products and Inventory > Process delivery modes

Daily

This job sets up delivery modes on a new store when added to organization hierarchy ‘retail store by department’. On the modes of delivery you can assign a organizational hierarchy, and this batch job assigns the specific modes of deliveries to each store. The modes of delivery is used in omnichannel scenario’s where the customer can have their products sent home etc.
A507

A507 Synchronize orders job

Retail and Commerce > Retail and Commerce IT > Synchronize orders

Hourly

If you have setup your channels to create sales order asynchrony, this job will create the sales orders and post payments. Also take a look at the following Microsoft docs on how sales orders and payments are synchronized from an online store.
A508

A508 Update search Product data

Sales and marketing > Setup > Search> Search criteria

Daily

Create an indexed search of products, that makes it faster and easier to search for products in the call center.
A509

A509 Update search Customer data

Sales and marketing > Setup > Search> Search criteria

Daily

Create an indexed search of customers, that makes it faster and easier to search for customers in the call center.
A510

A510 DOM batch job

Workspace > Distributed Order Management > Dom processor job setup

Hourly

Run distributed order management on retail sales orders to determine what warehouse should deliver the sales order
A511

A511 DOM fulfillment data deletion job

Workspace > Distributed Order Management > DOM fulfillment data deletion job setup

Daily

Cleans up the DOM data that is no longer the valid calculation.
A512

A512 Default channel database batch job

Class : RetailCdxChannelDbDirectAccess

Every 3 minutes

This job main duty is to check all Download sessions and Upload sessions with status “Available”, then it will apply the data to respective target DB’s (AX or channel DB). See also this blog.
A513

A513 Recommendation batch job

Class FormRunConfigurationRecommendationBatch

Weekly

Se Microsoft docs.
A514

A514 Retail scheduler history data removal batch job

Retail and Commerce > Headquarters setup > Parameters > Retail scheduler parameters

Class: RetailCdxPurgeHistory

Daily

Deletes CDX history. Typical only keeping 30 days of CDS history
A515

A515 Create customers from async mode

Retail and Commerce > Retail and Commerce IT > Customer > Create customers from async mode

Hourly

If customers should be created async (parameter), then this job will create the customer.
A516

A516 Retail transaction consistency checker orchestrator

Retail and Commerce > Retail and Commerce IT > POS posting > Validate store transactions

Hourly

Performs validation on the unposted POS transactions. See Microsoft docs.
A517

A517 Retail transactional statement calculate batch scheduler

Retail and Commerce > Retail and Commerce IT > POS posting > Calculate transactional statement in batch

Hourly (of faster)

Retail statement Trickle feed transactional calculate. Creates transactional statement. Se the following blog post.
A518

A518 Retail transactional statement post batch scheduler

Retail and Commerce > Retail and Commerce IT > POS posting > Post transactional statement in batch

Hourly (of faster)

Retail statement Trickle feed transactional calculate. Create and posts sales orders. Se the following blog post.
A519

A519 Retail financial statement calculate batch scheduler

Retail and Commerce > Retail and Commerce IT > POS posting > Calculate financial statement in batch

Daily

Retail statement Trickle feed financial statement calculate. Creates financial statement. Se the following blog post.
A520

A520 Retail transactional statement post batch scheduler

Retail and Commerce > Retail and Commerce IT > POS posting > Post financial statement in batch

Daily

Retail statement Trickle feed financial calculate. Posts shift declaration Se the following blog post.
A521

A521 Process loyalty schemes

Retail and Commerce > Retail and Commerce IT > Loyalty > Process loyalty schemes

Processes loyalty schemes. See Microsoft docs.
A522

A522 Post earned points in batches

Retail and Commerce > Retail and Commerce IT > Loyalty > Post earned points in batches

Loyalty points should be posted in batch. See Microsoft docs.
A523

A523 Process loyalty lines for other activities

Retail and Commerce > Retail and Commerce IT > Loyalty > Process loyalty lines for other activities

Other Loyalty points in batch. See Microsoft docs.
A524

A524 Retail time zone information job

Monthly

Generates timezone information up until 2054. Ensures that timezone used in the store does not causes inconsistent dates.

Inventory management batch jobs

ID

Name, path and recurrence

Description

A600

A600 Calculation of location load

Inventory management > Periodic tasks > Clean up > Calculation of location load

Daily

WMSLocationLoad table is used in tracking weight and volume of items and pallets. Summation of load adjustments job can be run to reduce the number of records in the WMSLocationLoad table and improve performance.

A601

A601 Inventory journals clean-up

Inventory management > Periodic tasks > Clean up > Inventory journals cleanup

Weekly

It is used to delete posted inventory journals.

A602

A602 Inventory settlements clean up

Inventory management > Periodic tasks > Clean up > Inventory settlements cleanup

Manually/Yearly



It is used to group closed inventory transactions or delete canceled inventory settlements. Cleaning up closed or deleted inventory settlements can help free system resources.

Do not group or delete inventory settlements too close to the current date or fiscal year, because part of the transaction information for the settlements is lost.

Closed inventory transactions cannot be changed after they have been grouped, because the transaction information for the settlements is lost.

Canceled inventory settlements cannot be reconciled with finance transactions if canceled inventory settlements are deleted.

A603

A603 Inventory dimensions cleanup

Inventory management > Periodic tasks > Clean up > Inventory dimensions cleanup

Manually/Yearly

This is used to maintain the InventDim table. To maintain the table, delete unused inventory dimension combination records that are not referenced by any transaction or master data. The records are deleted regardless of whether the transaction is open or closed.

Inventory dimension combination record that is still referenced cannot be deleted because when an InventDim record is deleted, related transactions cannot be reopened.

A604

A604 Dimension inconsistency cleanup

Inventory management > Periodic tasks > Clean up > Dimension inconsistency cleanup

Manually/Yearly

This is used to resolve dimension inconsistencies on inventory transactions that have been financially updated and closed. Inconsistencies might be introduced when the multisite functionality was activated during or before the upgrade process. Use this batch job only to clean up the transactions that were closed before the multisite functionality was activated. Do not use this batch job periodically.

A605

A605 On-hand entries cleanup

Inventory management > Periodic tasks > Clean up > On-hand entries cleanup

Monthly

This is used to delete closed and unused entries for on-hand inventory that is assigned to one or more tracking dimensions. Closed transactions contain the value of zero for all quantities and cost values, and are marked as closed. Deleting these transactions can improve the performance of queries for on-hand inventory. Transactions will not be deleted for on-hand inventory that is not assigned to tracking dimensions.

A606

A606 Warehouse management on-hand entries cleanup

Inventory management > Periodic tasks > Clean up > Warehouse management on-hand entries cleanup

Weekly

Deletes records in the InventSum and WHSInventReserve tables. These tables are used to store on-hand information for items enabled for warehouse management processing (WHS items). Cleaning up these records can lead to significant improvements of the on-hand calculations.

A607

A607 On-hand entries aggregation by financial dimensions

Inventory management > Periodic tasks > Clean up > On-hand entries aggregation by financial dimensions

Weekly

Tool to aggregate InventSum rows with zero quantities.

This is basically extending the previously mentioned cleanup tool by also cleaning up records which have field Closed set to True!

The reason why this is needed is basically because in certain scenarios, you might have no more quantities in InventSum for a certain combination of inventory dimensions, but there is still a value. In some cases, these values will disappear, but current design does allow values to remain from time to time.

If you for example use Batch numbers, each batch number (and the combined site, warehouse, etc.) creates a new record in InventSum. When the batch number is sold, you will see quantity fields are set to 0. In most cases, the Financial/Physical value field is also set to 0, but in Standard cost revaluation or other scenarios, the value field may show some amount still. This is valid, and is the way Dynamics 365 for Finance and Operations handles the costs on Financial inventory level, e.g. site level.

Inventory value is determined in Dynamics 365 for Finance and Operations by records in InventSum, and in some cases Inventory transactions (InventTrans) when reporting inventory values in the past. In the above scenario, this means that when you run inventory value reports, Dynamics 365 for Finance and Operations looks (initially) at InventSum and aggregates all records to Site level, and reports the value for the item per site. The data from the individual records on Batch number level are never used. The tool therefore goes through all InventSum records, finds the ones where there is no more quantity (No open quantities field is True). There is no reason to keep these records, so Dynamics 365 for Finance and Operations finds the record in InventSum for the same item which has the same Site, copies the values from the Batch number level to the Site level, and deletes the record. When you now run inventory value reports, Dynamics 365 for Finance and Operations still finds the same correct values. This reduced number of InventSum records significantly in some cases, and can have a positive impact on performance of any function which queries this table.

A608

A608 Cost calculation details

Inventory management > Periodic tasks > Clean up > Cost calculation details

Monthly

Used to clean up cost calculation details.

A609

A609 CDS – Post integration inventory journals

Inventory management > Periodic tasks > CDS integration > Post integration inventory journals

Fetches journals from the CDS (Common Data Service) and posts them. This applies only of the CDS is in use.

Warehouse management batch jobs

ID

Name, path and recurrence

Description

A700

A700 Work creation history purge

Warehouse management > Periodic tasks > Clean up > Work creation history purge

Weekly

This is used to delete work creation history records from WHSWorkCreateHistory table based on number of days to keep the history provided on dialog.

A701

A701 Containerization history purge

Warehouse management > Periodic tasks > Clean up > Containerization history purge

Weekly

This is used to delete containerization history from WHSContainerizationHistory table based on number of days to keep the history provided on dialog.



A702

A702 Wave batch cleanup

Warehouse management > Periodic tasks > Clean up > Wave batch cleanup

Weekly

This is used to clean up batch job history records related to Wave processing batch group.

A703

A703 Cycle count plan cleanup

Warehouse management > Periodic tasks > Clean up > Cycle count plan cleanup

Weekly

This is used to clean up batch job history records related to Cycle count plan configurations.

A704

A704 Mobile device activity log cleanup

Warehouse management > Periodic tasks > Clean up > Mobile device activity log cleanup

Weekly

This is used to delete mobile device activity log records from WHSMobileDeviceActivityLog table based on number of days to keep the history provided on dialog.

A705

A705 Work user session log cleanup

Warehouse management > Periodic tasks > Clean up > Work user session log cleanup

Weekly

This is used to delete work user session records from WHSWorkUserSessionLog table based on number of hours to keep provided on dialog.

A706

A706 Wave processing history log cleanup

Warehouse management > Periodic tasks > Clean up > Wave processing history log cleanup

Weekly

This is used to clean up history records related to Wave processing batch group.

A707

A707 WMS Replenishment

Warehouse management > Replenishment > Replenishments

Calculate location replenishments on the warehouse locations.

A708

A708 Automatic release of sales orders

Warehouse management > Automatic release of sales orders

Releases sales orders to the warehouse so that the picking can start.

Monitoring Distribution jobs

The Retail IT workspace is specifically created to monitor all distribution jobs, sending data to RCSU and POS. If there are failed sessions, they will be seen here. Also the current download (To RCSU) and Upload (From RCSU) is shown here.


Monitoring Batch jobs

The best place to monitor all current batch jobs is through the system administration workspace. Here all failed, running, waiting and withheld batch jobs are shown. This workspace also has additional system administration features.



4 thoughts on “Batch Jobs; Take control of the executions

Leave a Reply

Fill in your details below or click an icon to log in:

WordPress.com Logo

You are commenting using your WordPress.com account. Log Out /  Change )

Google photo

You are commenting using your Google account. Log Out /  Change )

Twitter picture

You are commenting using your Twitter account. Log Out /  Change )

Facebook photo

You are commenting using your Facebook account. Log Out /  Change )

Connecting to %s

This site uses Akismet to reduce spam. Learn how your comment data is processed.
