MPOS – Open full (kiosk) screen mode when having dual display

For a retailer, every saved “click” is appreciated, and the ability to remove any noise appreciated.

When starting MPOS in maximum mode, you will often see that you have a title bar at the top, and the app-bar at the bottom.

In windows 10 you can also use the “tablet-mode” to get the MPOS into full screen mode.

BUT! If you have a dual display setup, it the tablet mode does not work.

If you want to remove them, there is a smart keyboard short-cut:

Shift-Windows-Enter

This will put the MPOS in full screen mode, and giving a nicer appearance without the bar’s.

Then the questions is how to make this always happen, when starting the MPOS ? This was actually not a easy task, but a colleague of me (Espen) made it possible , du using a powershell script.

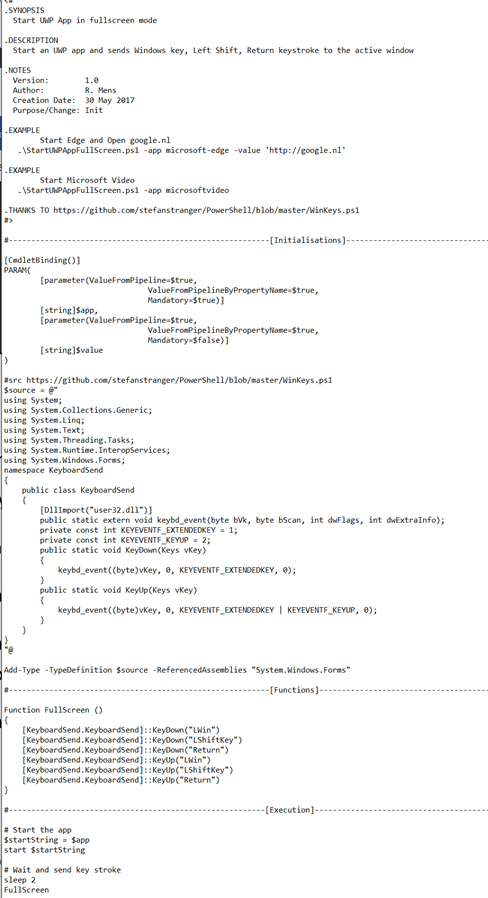

The following page contains a small powershell script, that opens a UWP app in full (kiosk) screen mode:

Add this to a “start up folder”, and create a new powershell script containing ;

[Path]\StartUWPAppFullScreen.ps1
-app
Shell:Appsfolder\Microsoft.Dynamics.Retail.Pos_tfm0as0j1fqzt!App



Then create a shortcut towards this new powershell app.

How initial investigations (by Sven Erik) shows that the MPOS app ID is Microsoft.Dynamics.Retail.Pos_tfm0as0j1fqzt!App and let’s hope this ID stay’s permanent.

Then the MPOS looks nicer for the user, without noice.







I appreciate that I can be a part of this worldwide blog community—as a consultant working from Norway, the blog lets me share more than 20 years of experience with Microsoft Dynamics 365. Along the way, I participated in developing retail, PDA/RF, barcoding, master data, kitting and WMS-solutions for Dynamics. My blog focuses on my deepest interests and expertise: along with a 360 degree view of digital transformation topics, I welcome opportunities to dive into retail and intercompany supply chain automation, logistics, and production—everything that is moving around in a truly connected enterprise. As Enterprise Architect on Dynamics 365, I specialize in strategic development and planning for corporate vertical solutions and works to build international networks that increase knowledge and understanding for Dynamics 365. As an advocate for both providers and customers, I'm committed to ensure that customers constantly changing needs are meet, and I see community as key for increasing expertise. I welcome you to connect with me.

1 comment on “MPOS – Open full (kiosk) screen mode when having dual display

  1. One aspect to keep in mind: the MPOS App ID (UWP Package Family Name) changes once the MPOS App’s package manifest has been modified, for instance, in case of the Publisher certificate change: and a new package/app ID will be generated.
